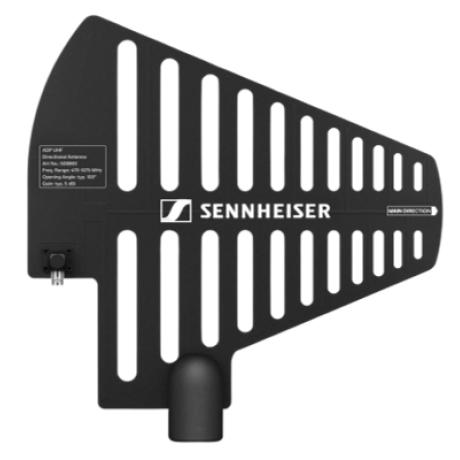

Anten đa hướng thụ động dải rộng

Frequency range 470 – 1075 MHz
Apex angle (-3 dB) approx. 100°
Front-to-back ratio > 14 dB
Gain typ. 5 dBi
Impedance 50 Ω
Connection BNC female, no DC path
Threads for tripod
mounting
3/8" and 5/8"
Dimensions 319 x 310 mm
Weight Approx. 1100 g (2.43 lbs)
Operating temperature
range
-10 °C - +55 °C
(14 °F - 131 °F)
Storage temperature
range
-20 °C - +85 °C
(-4 °F - 185 °F)
Relative humidity max. 95 % (non-condensing
